Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-20 20 kn

Brand Name : PTE

Model Number : Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-20 20 kn

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Delivery Time : wooden case

Packaging Details : within 10 days after the confirmed order

Usage : Universal Testing Machine

standards : ASTM, DIN, BS, JIS, GB, etc.

test material : metal,plastic,rubber,spring, all kinds of rope material

fields : metallurgy, machinery, building engineering,industry,lab,factory

Load accuracy : ≤±1%

Contact Now

Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-20 20 kn

Applications:
WDW20 Computer Control Electromechanical Universal Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards.

It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request.

Model	WD-20
Max. Load	20KN
Load accuracy	≤±1%
Load range	2%-100% of full scale
Test speed	0.01-500mm/min
Displacement resolution	0.01mm
Effective test width	570mm
Effective tensile space	700mm
Dimension	830×550×2000mm
Load frame type	Table type

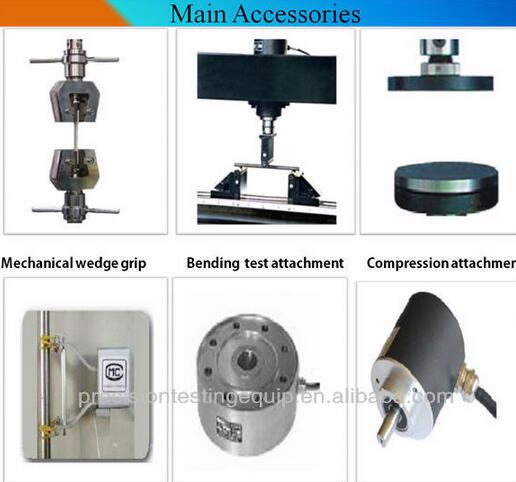

Main Accessories:

1. Mechanical wedge grip 1 set
Inserts for round specimen Φ4~Φ9mm, Φ9~Φ14mm, Φ14~Φ20mm, 1 set for each
Inserts for flat specimen 0~7mm, 7~14mm, 7~21mm 1 set for each

2. Compression test attachment 1 set

3. Bending test attachment 1 set

4. High precision load cell 1 set Flat load cell +/-100kN, Tensile & Compression type

5. Photoelectric encoder 1 set Measure the displacement

6. Extensometer Gauge length: 50mm, travel 25mm

7. Computer & printer & software 1 set Computer: LENOVA or Dell Printer: Hp

8. Servo motor and Control system 1 set

Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-20 20 kn

Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
