Technical parameter: |

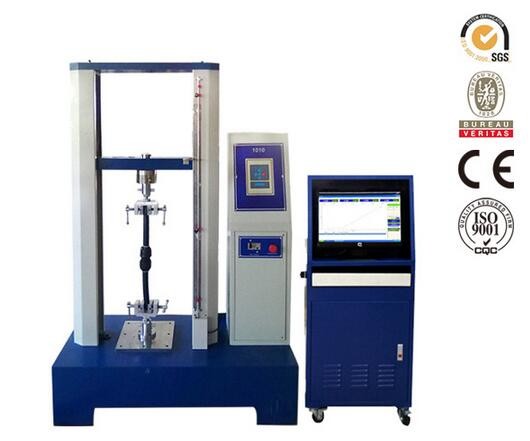

| model | HZ-1010B |
| Maximum load | 1ton, 2ton, option |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | Force from 0.2% to 100% (1 grade) / from 0.4% to 100% (0.5 grade) |
| Measuring accuracy | the value ±1% / the value ±0.5% |
| Tester resolution | Max load 1/200000, constant the resolution |
| Load sensor | Basic configuration sensor max load: one |
| Effective testing width | 450mm(can be widened according to customers requirement) |
| Effective tensile space | 400, 500, 600mm (can be increased the height according to customers requirement) |
| Testing speed | From 0.001 to 500mm/min |
| Accruacy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
Deformation of measured system
according to the requirements | Min span:10mm, Max range of deformation 800mm
Extended deformation span: 25mm, 50mm, 100mm, range of deformation 5mm, 10mm, 25mm |
| Accuracy of measured deformation | Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow ( two speeds to control), can jog |
| Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 1200*530*1800mm(lenght*width*height) |
| Motor | Panasonic AC servo motor and drive |
| Power supply | 220V 50HZ |
| power | 0.75KW (depending on different demand of force, using different motor) |
| weight | about 500 Kg |
